What is UTM? UTM stands for Universal Transverse Mercator. It is a global coordinate system based on the Transverse Mercator Projection. Instead of representing the whole Earth with one continuous map projection, UTM divides most of the world into narrow zones. Each zone is projected separately so that distortion remains relatively small within that area.

How is it a cylindrical projection? The Transverse Mercator belongs to the cylindrical family of map projections. In the normal Mercator concept, the cylinder is oriented around the equator. In the Transverse Mercator, the cylinder is turned through 90 degrees, so the projection is centred on a selected central meridian.

What is a transverse cylindrical projection?

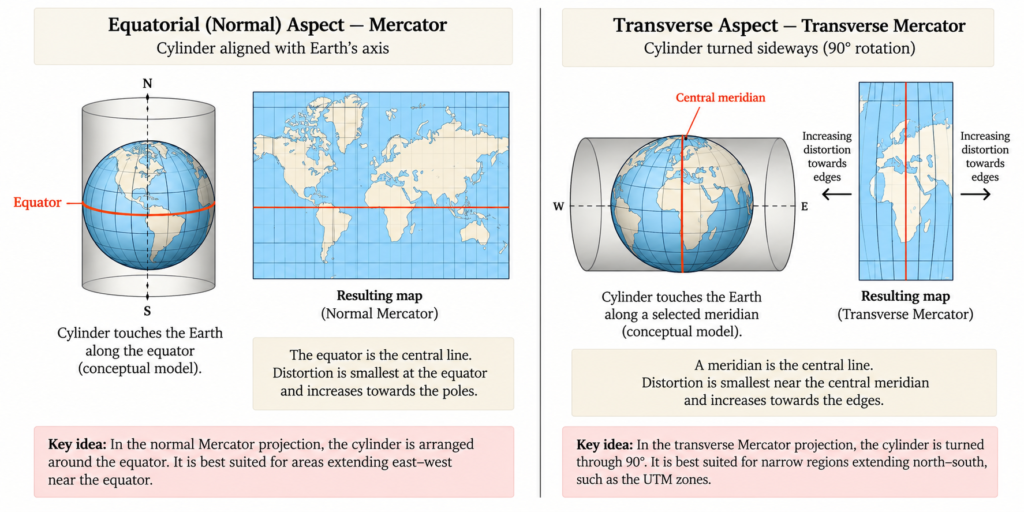

The Transverse Mercator is a cylindrical projection, but the cylinder can be positioned in different ways around the Earth. In the equatorial or normal aspect, the cylinder is placed around the Earth with its axis aligned with the Earth’s polar axis. In the simple cylindrical model, the equator is the central line of contact. This is the arrangement used to explain the ordinary Mercator projection.

In the transverse aspect, the cylinder is turned through 90 degrees. Instead of being centred on the equator, the projection is centred on a selected meridian, called the central meridian. This arrangement is particularly useful for mapping narrow areas that extend from north to south.

The UTM system uses the Transverse Mercator projection. It applies this transverse arrangement to narrow parts of the Earth so that distortion can be kept relatively small within each area.

What is the secant cylinder concept?

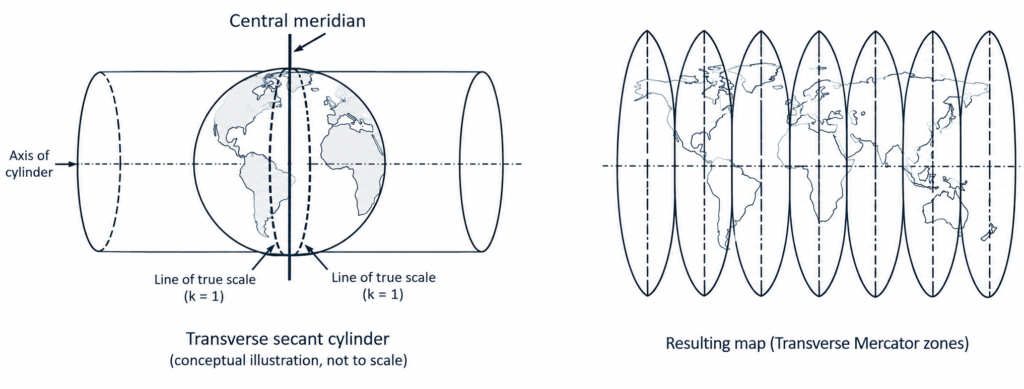

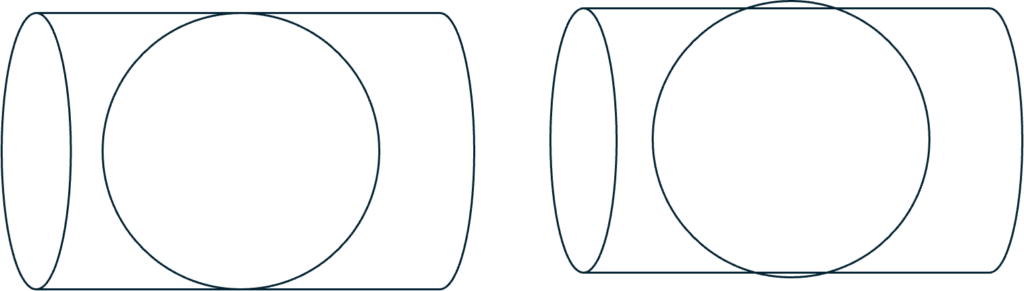

UTM uses a slightly modified form called the secant Transverse Mercator. Instead of imagining the cylinder simply touching the Earth along the central meridian, the cylinder is positioned so that it conceptually cuts slightly through the Earth.

This produces two lines of true scale on either side of the central meridian and helps distribute distortion more evenly across the mapped area.

The scale factor along the central meridian is:

k₀ = 0.9996

This means the scale along the central meridian is slightly reduced. Moving outward from the central meridian, the scale increases until it becomes true along two lines, and then increases slightly beyond them.

Why Secant Projection?

The secant arrangement helps to reduce and distribute scale distortion around the central meridian. However, as we move farther east or west from the central meridian, distortion still increases.

For this reason, a single Transverse Mercator projection is not used for the entire Earth. Instead, it is applied to a narrow strip of longitude around its central meridian.

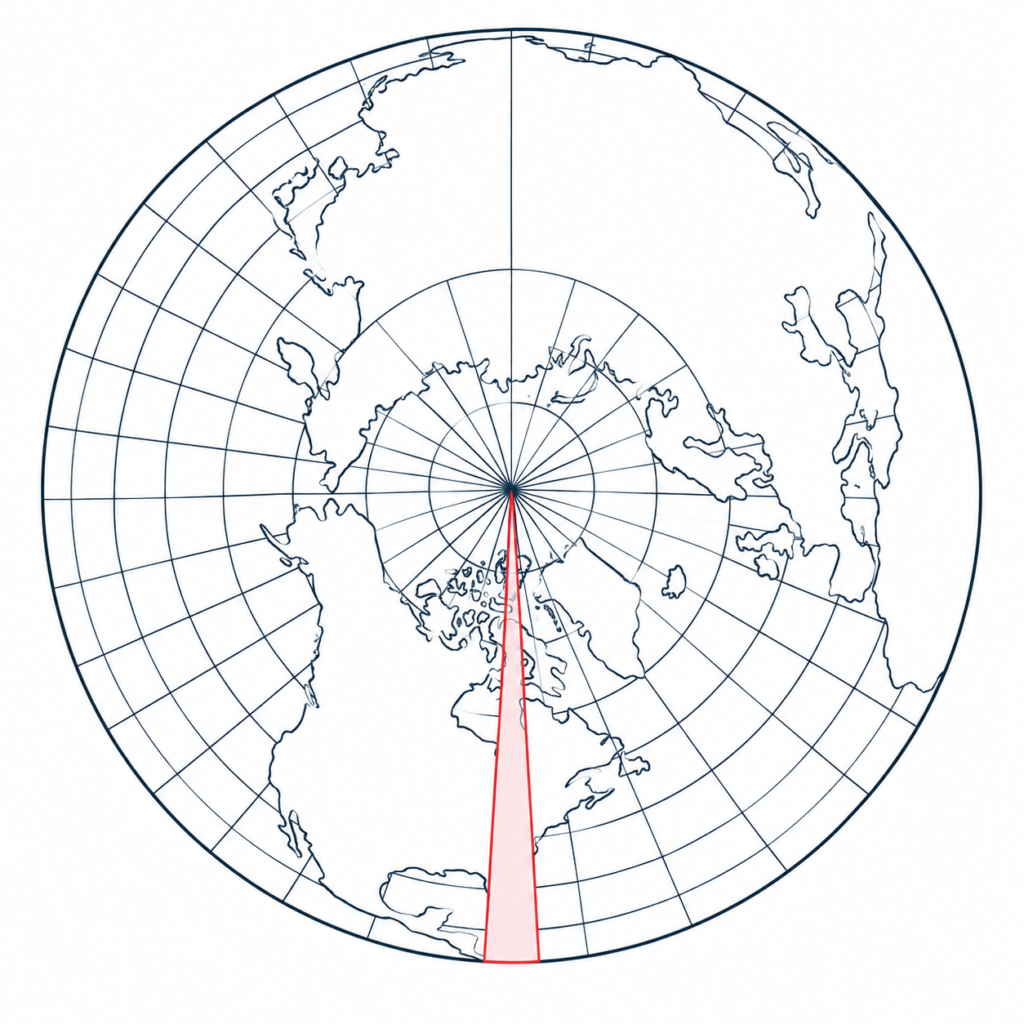

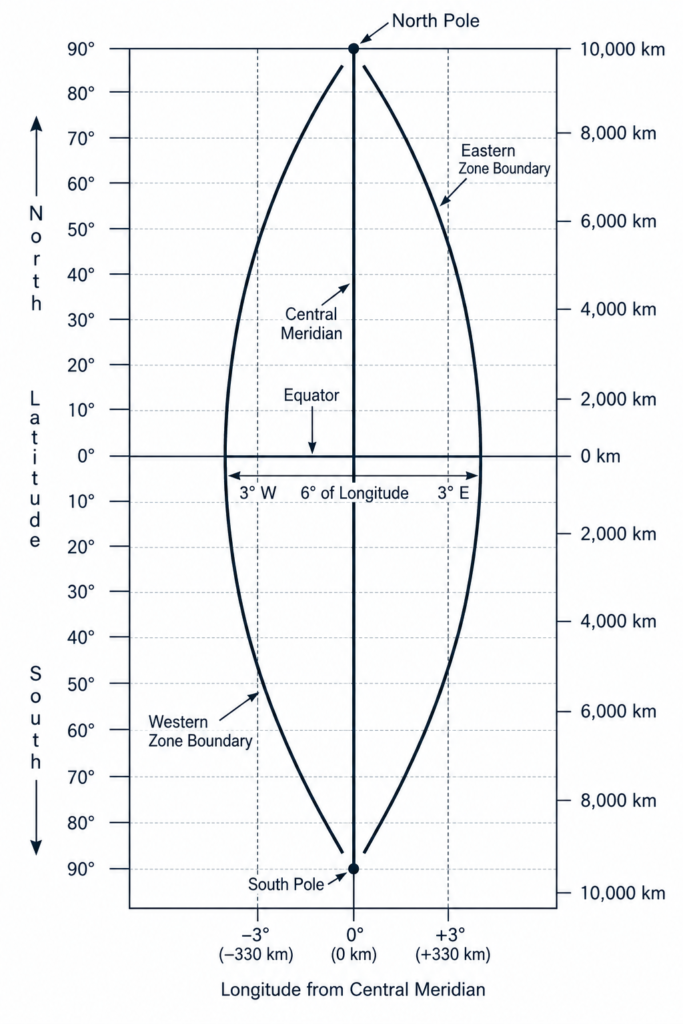

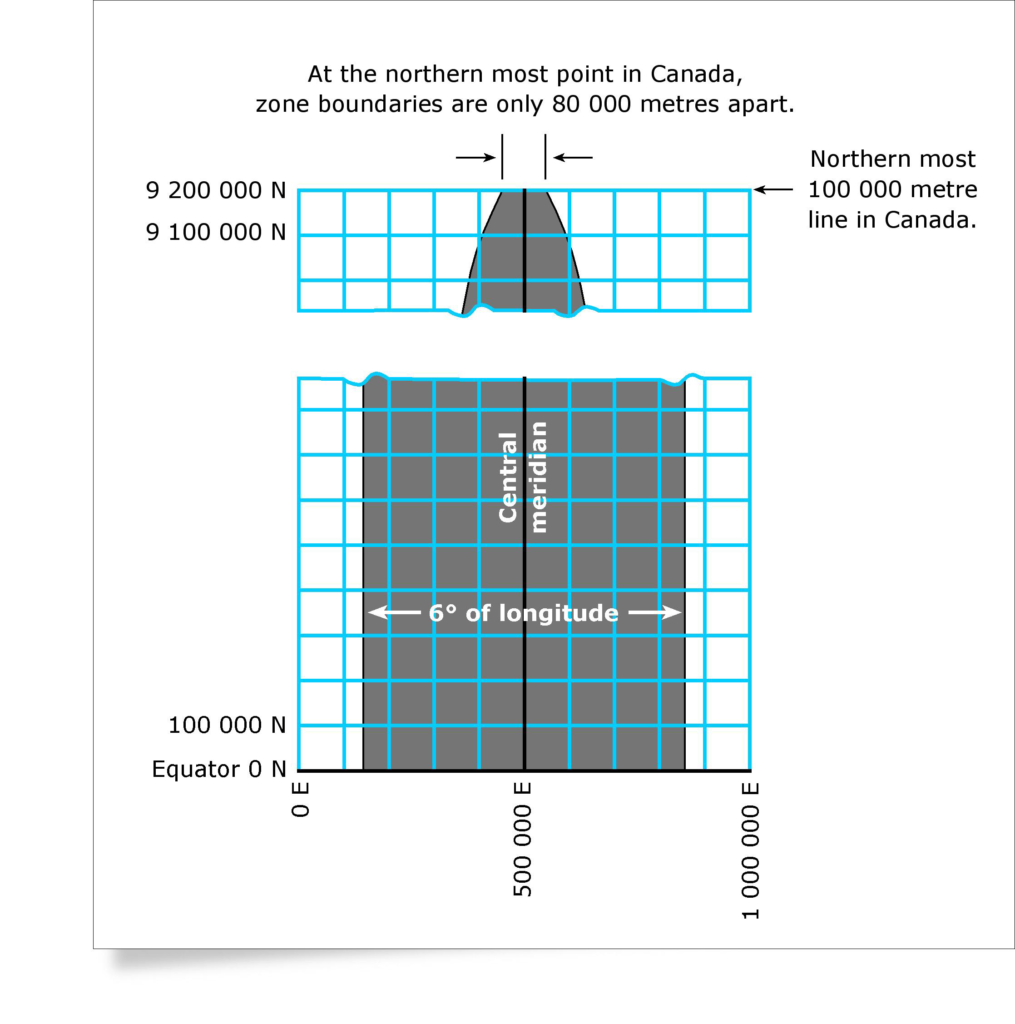

In the UTM system, this strip is normally 6° wide, extending 3° to the west and 3° to the east of the central meridian. Keeping the projected area narrow helps keep scale distortion relatively small throughout the strip.

To cover the Earth, a separate Transverse Mercator projection is used for each of these 6°-wide strips. These strips are called UTM zones.

Since the Earth covers 360° of longitude:

360° ÷ 6° = 60 zones

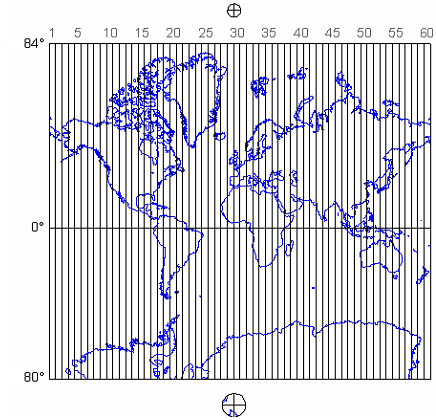

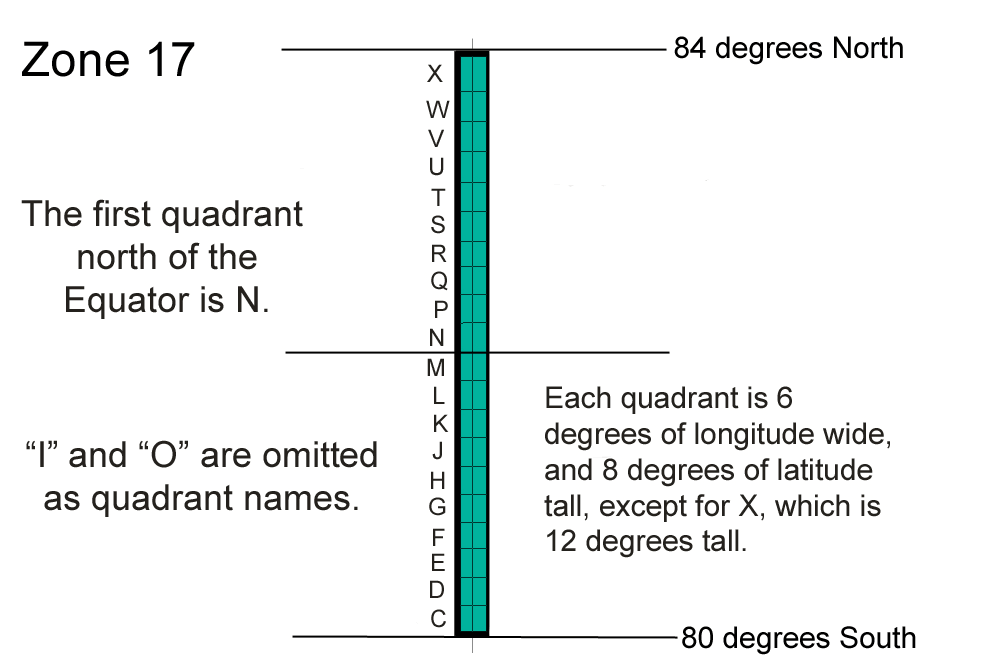

Therefore, the UTM system divides the Earth into 60 longitudinal zones, each with its own central meridian and its own Transverse Mercator projection.

Why Do We Need 60 UTM Zones?

The important idea is that UTM does not treat the Earth as one continuous projected map. Each zone functions as a separate mapping system, with its own Transverse Mercator projection centred on its own central meridian.

As we move around the Earth from one zone to the next, the projection is effectively re-centred on a new central meridian. This allows the same low-distortion mapping arrangement to be repeated around the globe rather than allowing distortion to accumulate across one very wide map.

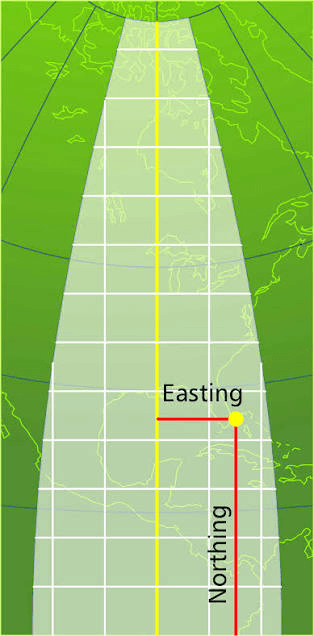

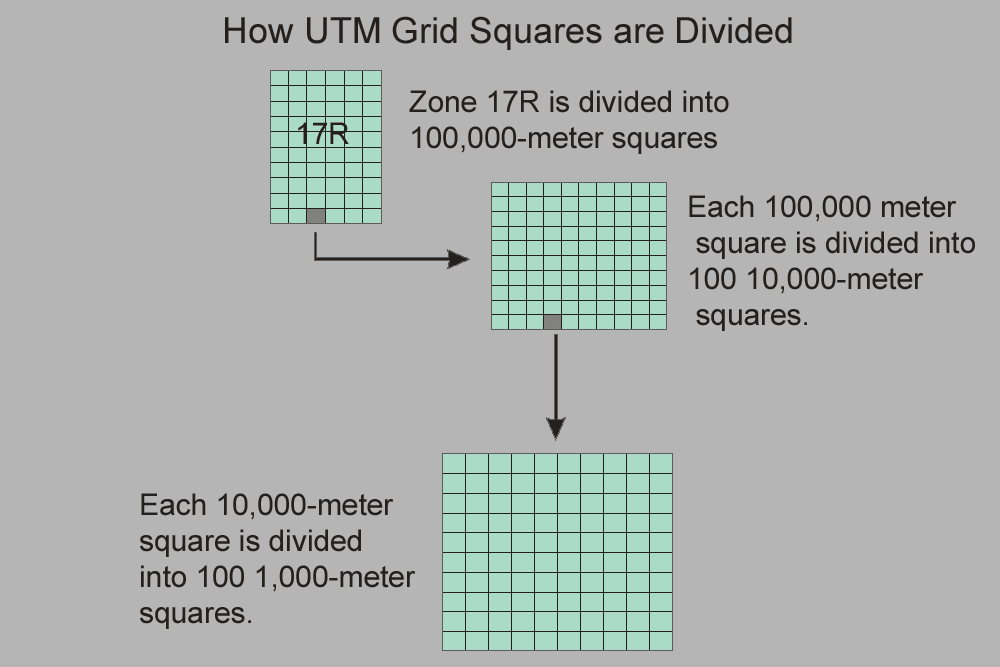

This also means that UTM coordinates are zone-specific. The same Easting and Northing values can occur in different zones, so a UTM position is not complete unless we also know which zone it belongs to.
